Welcome to ZHEJIANG MODENG LIGHTING TECHNOLOGY CO.,LTD.
description   description

913-1S Suspended light

Back


PowerL*W*H(mm)Lumen/PowerItem No
Low 1180*69*902000lm/20W913-1S.F120W/F120W
1470*69*902500lm/25W913-1S.F125W/F125W
2340*69*904000lm/40W913-1S.F140W/F140W
Medium1180*69*902800lm/28W913-1S.A128W/A128W
1470*69*903500lm/35W913-1S.A135W/A135W
2340*69*905600lm/56W913-1S.A156W/A156W
High1180*69*9021280lm/152W913-1S.2A138/2C138W
1470*69*9013160lm/94W913-1S.2A147/2C147W
2340*69*9010640lm/76W913-1S.2A138/2C138W





PowerL*W*H(mm)(mm)Lumen/PowerItem No
Low1180*69*902000lm/20W913-1S.F120W
1470*69*902500lm/25W913-1S.F125W
2340*69*904000lm/40W913-1S.F140W
Medium1180*69*902800lm/28W913-1S.A128W
1470*69*903500lm/35W913-1S.A135W
2340*69*905600lm/56W913-1S.A156W
High1180*69*905320lm/38W913-1S.2C138W
1470*69*906580lm/47W913-1S.2C147W
2340*69*9010640lm/76W913-1S.2C176W



Material & technology

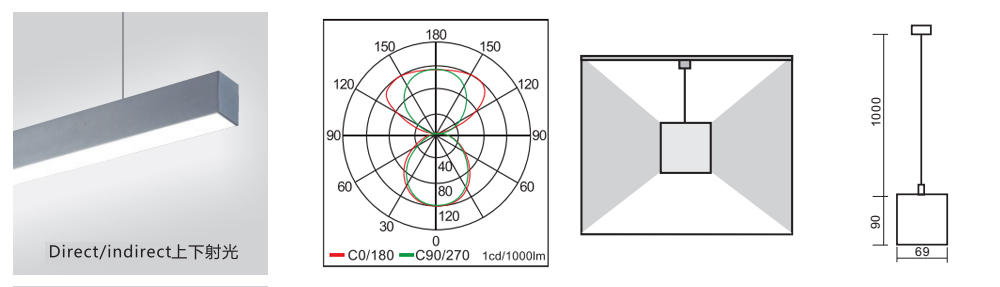

Light distribution:Direct/Indirect Light or Direct Light

Light source:High brightness SMD LED, or T5 (G5)

Color rendering:CRI≥80, can customize CRI≥90

CCT:3000K, 4000K, 6500K, can customize 5000K

Driver:Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Lamp material:High grade anodizing aluminum (6063 Alloy), painted with White, can customize other color

Diffuser:Opal prismatic diffuser or “I” shape louvre

End caps material:ABS

IP:20

Connection:Can make shadowless continuous lighting system

Installation:S-Suspended, W-Wall mounted, C-Ceiling mounted, R-Recessed without trim .
