Welcome to ZHEJIANG MODENG LIGHTING TECHNOLOGY CO.,LTD.
description   description

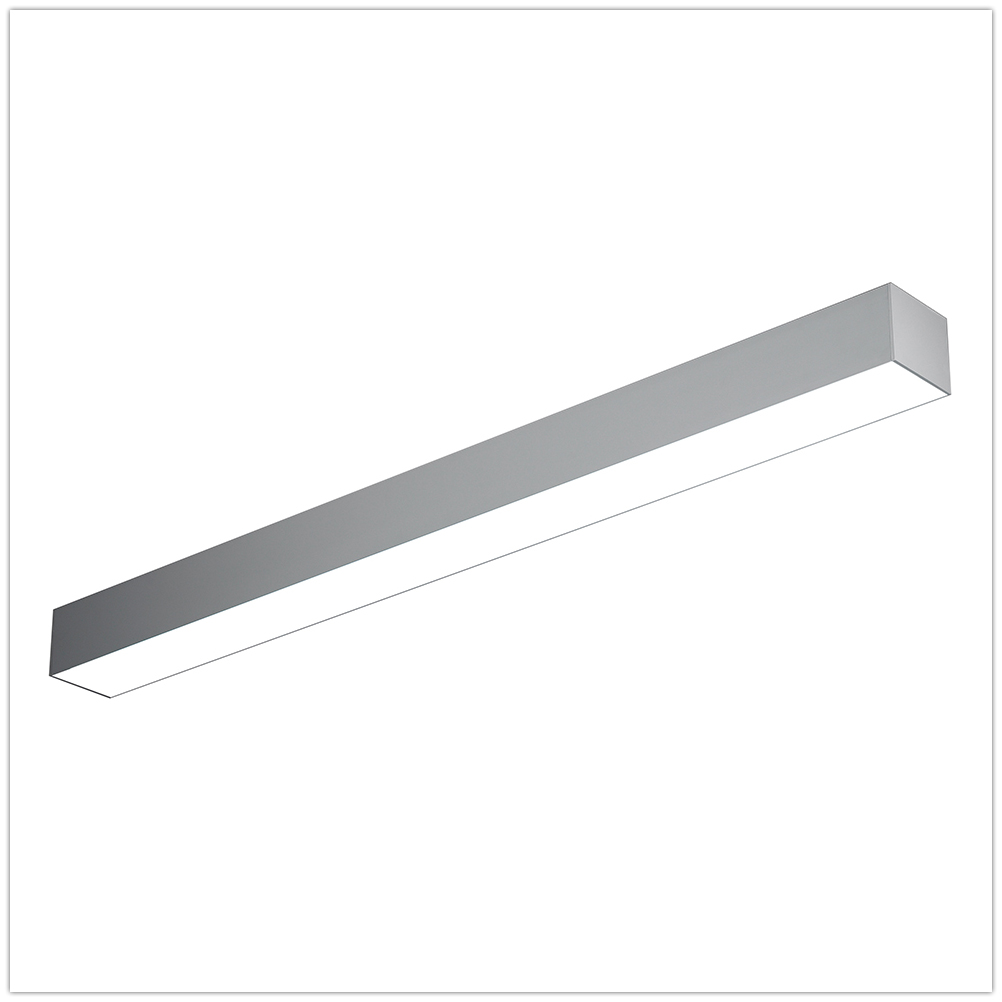

207-2S Suspend light

Back


PowerL*W*H(mm)Lumen/PowerItem No
Low1180*94*902000lm/20W207-2S.H120W
1470*94*902500lm/25W207-2S.H125W
2340*94*904000lm/40W207-2S.H140W
Medium1180*94*902800lm/28W207-2S.C128W
1490*94*903500lm/35W207-2S.C135W
2340*94*905600lm/56W207-2S.C156W
High
1180*94*905320lm/38W207-2S.2C138W
1470*94*906580lm/47W207-2S.2C147W
2340*94*9010640lm/76W207-2S.2C176W





PowerL*W*H(mm)Lumen/PowerItem No
Low1180*94*904000lm/40W207-2S.F120/H120W
1470*94*905000lm/50W207-2S.F125/H125W
2340*94*908000lm/80W207-2S.F140/H140W
Medium1180*94*905600lm/56W207-2S.A128/C128W
1490*94*907000lm/70W207-2S.A135/C135W
2340*94*9011200lm/112W207-2S.A156/C156W
High
1180*94*9010640lm/76W207-2S.2A138/2C138W
1490*94*9013160lm/94W207-2S.2A147/2C147W
2340*94*9021280lm/152W207-2S.2A176/2C176W



Material & technology

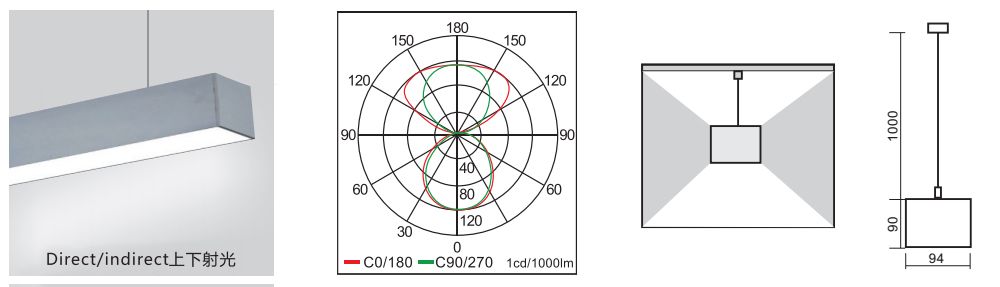

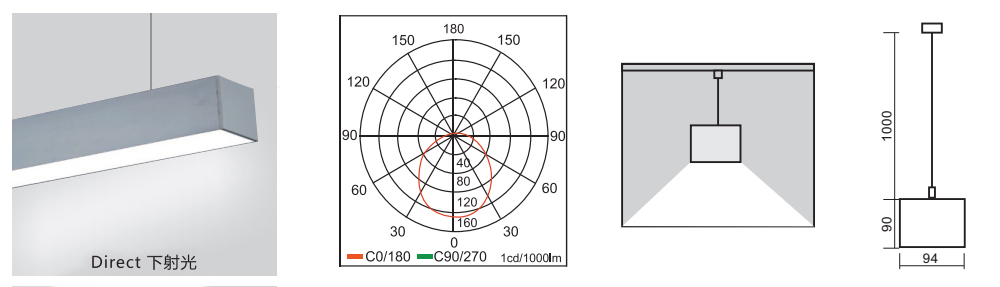

Light distribution:Direct/Indirect Light or Direct Light

Light source:High brightness SMD LED, or T5 (G5)

Color rendering:CRI≥80, can customize CRI≥90

CCT:3000K, 4000K, 6500K, can customize 5000K

Driver:Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Lamp material:High grade anodizing aluminum (6063 Alloy), painted with White, can customize other color

Diffuser:Opal prismatic diffuser with high transmittance and uniformity light                    End caps material:ABS

IP:20

Connection:Can do arbitrary combination and make shadowless continuous lighting system

Installation:S-Suspended ,C-Ceiling mounted
