Welcome to ZHEJIANG MODENG LIGHTING TECHNOLOGY CO.,LTD.
description   description

205SC Suspended light

Back




PowerL*W*H(mm)Lumen/PowerItem No
Low2337*81*905500lm/55W205SC.H135W+COB210
1467*81*904000lm/40W205SC.H120W+COB210
1177*81*903500lm/35W205SC.H115W+COB210
Medium2337*81*906900lm/69W205SC.C149W+COB210
1467*81*904800lm/48W205SC.C128W+COB210
1177*81*904100lm/41W205SC.C121W+COB210
High2337*81*9011240lm/86W205SC.2C166W+COB210
1467*81*909980lm/57W205SC.2C137W+COB210
1177*81*908720lm/48W205SC.2C128W+COB210

Beam angle:45°、24°、12°


也可訂制上下射光,燈具尺寸不變,功率增加。
Can customize Direct/Indirect light, the fixture size is the same, the power will be increase


Material & technology


Light distribution:Direct Light,or Direct/Indirect Light

Light source:High brightness SMD LED, or T5 (G5)

Color rendering:CRI≥80, can customize CRI≥90

CCT:3000K, 4000K, 6500K, can customize 5000K

Driver:Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Other functions:Optional with emergency kits and multifunction sensor

Lamp material:High grade anodizing aluminum (6063 Alloy), painted with White, can customize other color

Diffuser:Opal prismatic diffuser with COB spotlight,COB with angle 45°,or customize 24°/15°

End caps material:ABS

IP:20

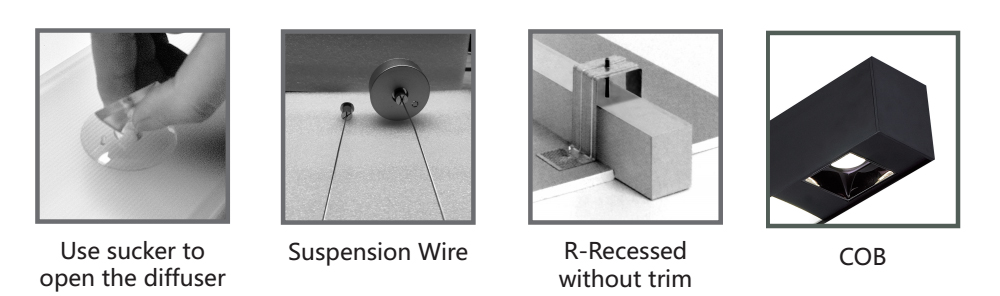

Installation:S-Suspended, C-Ceiling mounted, or R-Recessed without trim,Can connect with end caps,also can make 180°,90°,120° shadowless system without end caps to make various shapes.
